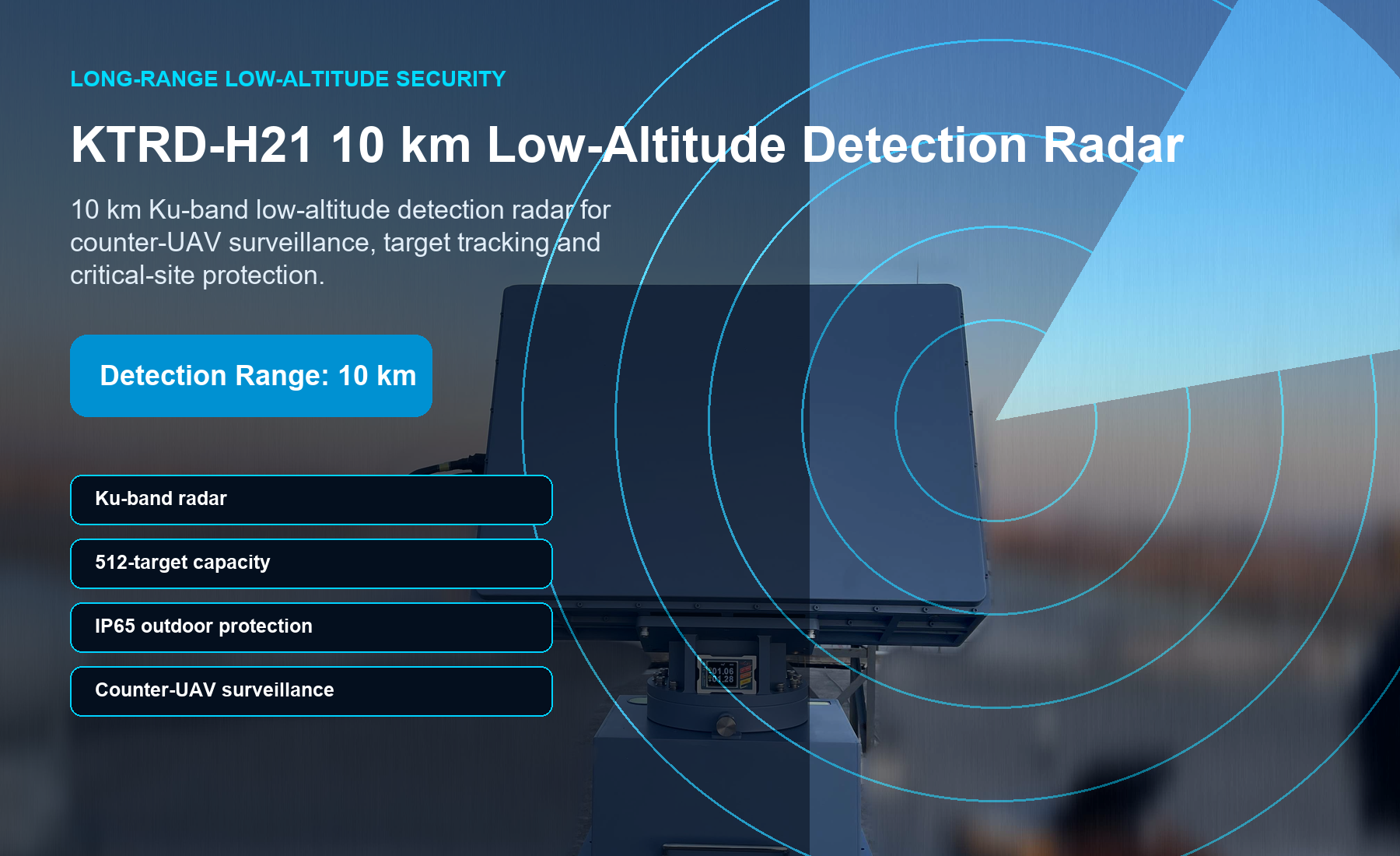

KTRD-H21 10 km Low-Altitude Detection Radar
$273,907.70
10 km Ku-band low-altitude detection radar for counter-UAV surveillance, target tracking and critical-site protection.
Specifications
KTRD-H21 10 km Low-Altitude Detection Radar

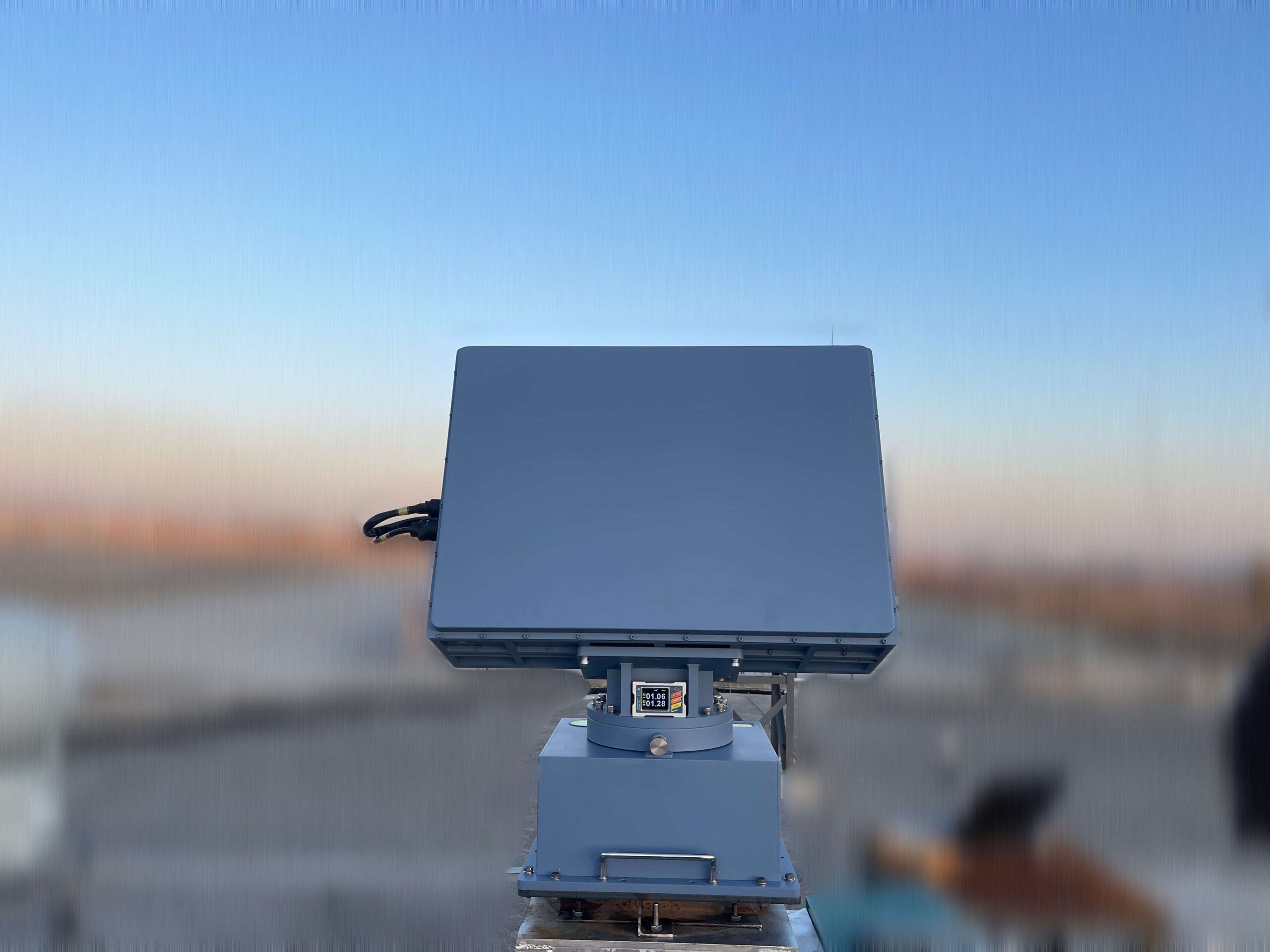

KTRD-H21 is a Ku-band low-altitude detection radar designed for remote detection and identification of drones, birds, vehicles and personnel. It supports automatic scanning, real-time target tracking and multi-target management for airports, ports, oilfields, border areas and other critical sites.

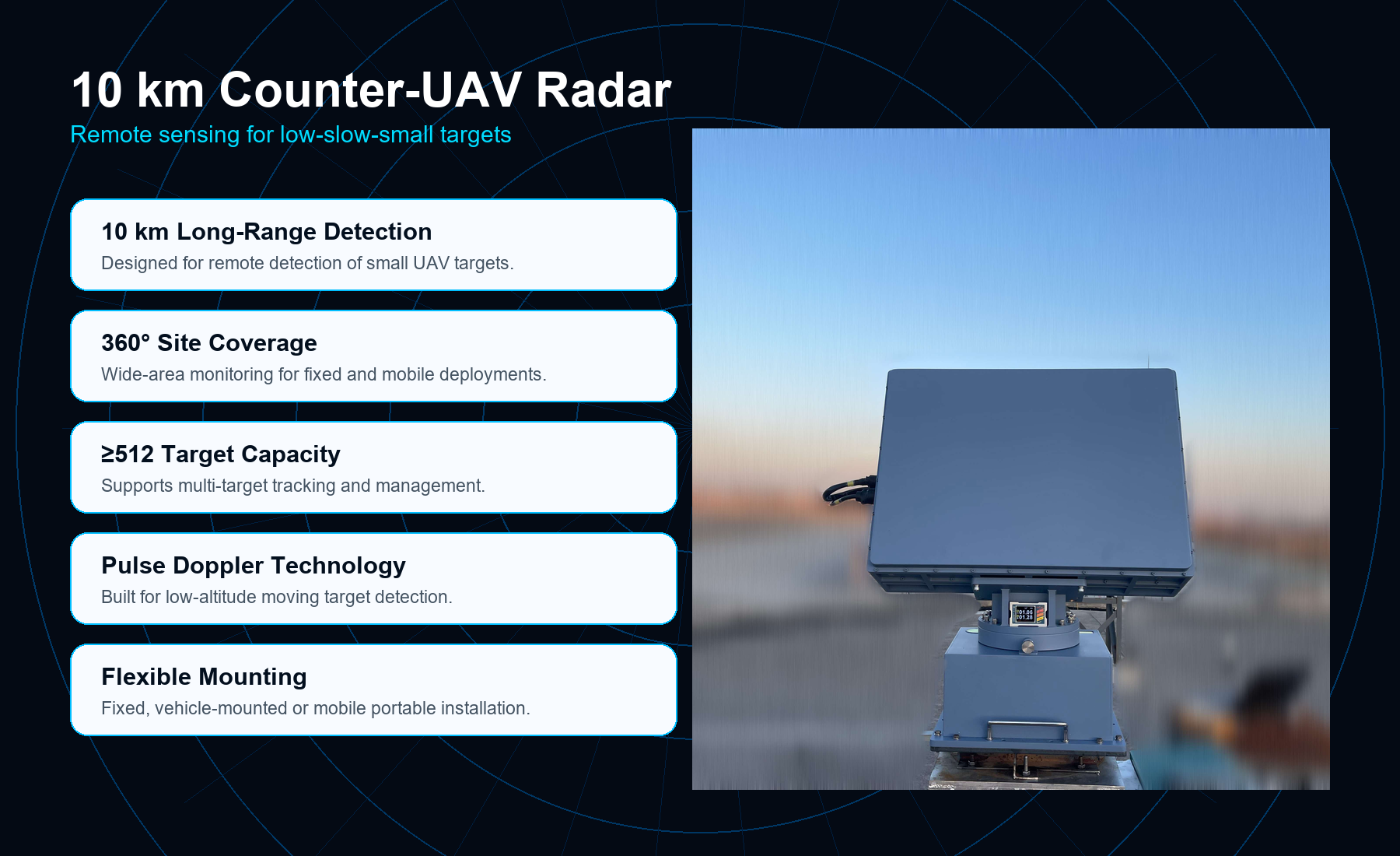

Key Features
- 10 km long-range low-altitude target detection
- Ku-band pulse Doppler radar architecture
- 360° azimuth coverage with 40° elevation coverage
- Multi-target tracking with ≥512 target capacity
- IP65 outdoor protection for harsh deployment environments
Application Scenarios
- Airport low-altitude protection
- Port security defense
- Oilfield perimeter warning
- Railway and power-grid monitoring
- Border and key-area security
- Counter-UAV surveillance

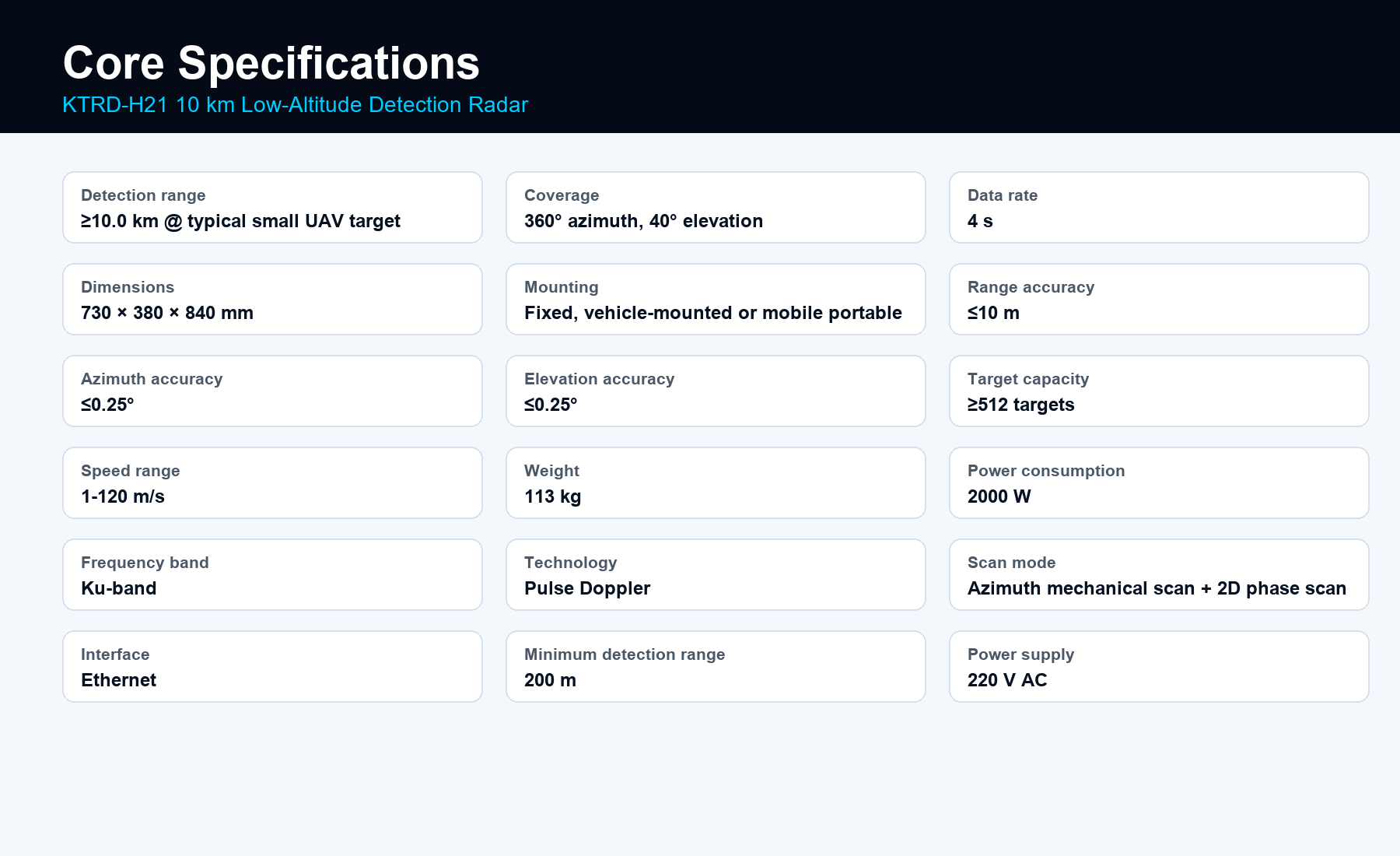

Technical Specifications
| Detection range | ≥10.0 km @ typical small UAV target |
| Coverage | 360° azimuth, 40° elevation |
| Data rate | 4 s |
| Dimensions | 730 × 380 × 840 mm |
| Mounting | Fixed, vehicle-mounted or mobile portable |
| Range accuracy | ≤10 m |
| Azimuth accuracy | ≤0.25° |
| Elevation accuracy | ≤0.25° |
| Target capacity | ≥512 targets |
| Speed range | 1-120 m/s |
| Weight | 113 kg |
| Power consumption | 2000 W |
| Frequency band | Ku-band |
| Technology | Pulse Doppler |
| Scan mode | Azimuth mechanical scan + 2D phase scan |
| Interface | Ethernet |
| Minimum detection range | 200 m |
| Power supply | 220 V AC |
| Protection rating | IP65 |
Contact us for configuration, deployment consultation and system integration support.

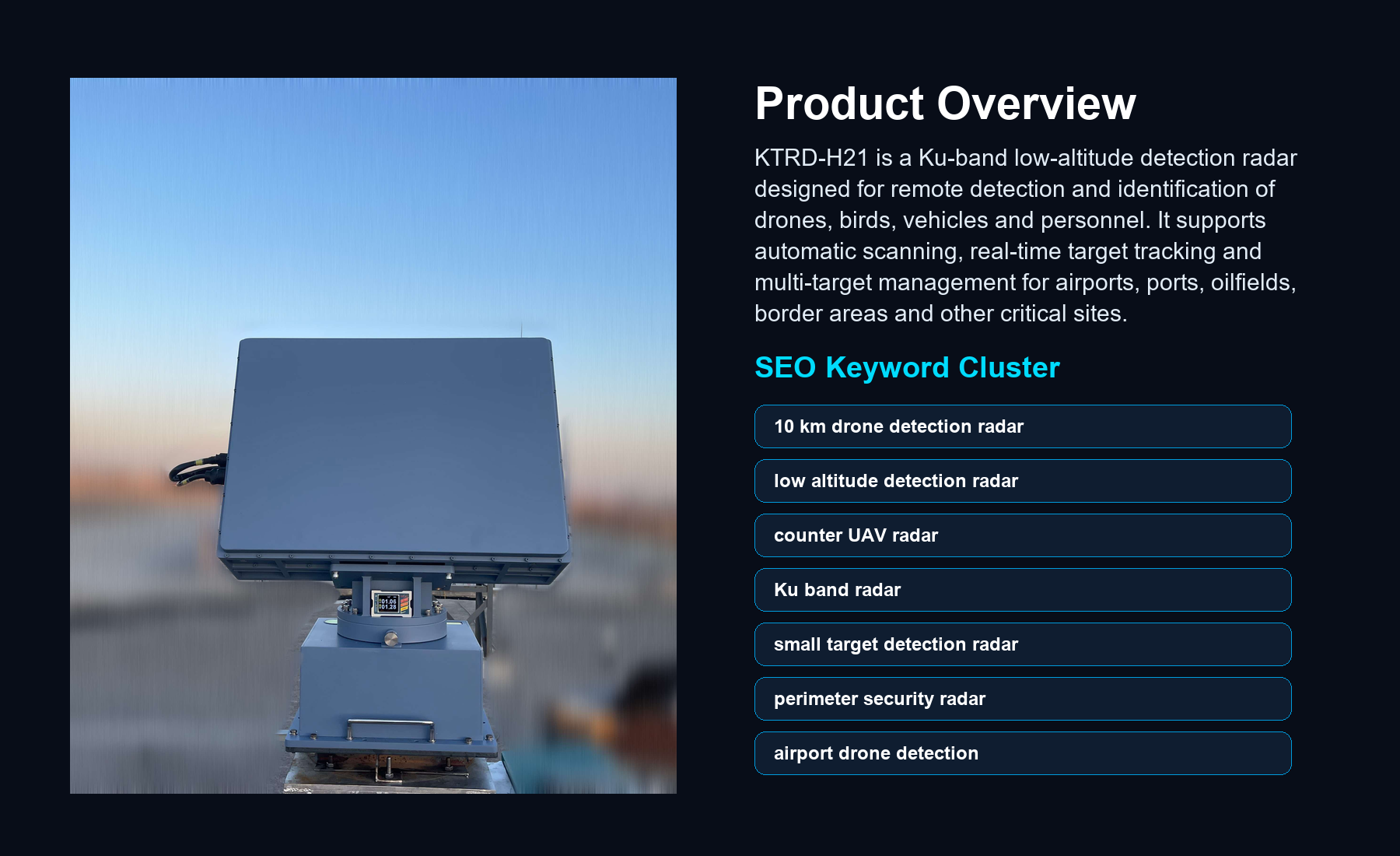

Product Overview
10 km Ku-band low-altitude detection radar for counter-UAV surveillance, target tracking and critical-site protection.
