KTDR-D21 5 km Low-Altitude Surveillance Radar
$133,252.30
Ku-band 5 km low-altitude surveillance radar for drone detection, target tracking and perimeter security.
Specifications
KTDR-D21 5 km Low-Altitude Surveillance Radar
KTDR-D21 is a Ku-band low-altitude surveillance radar designed for real-time detection, tracking and classification of low-altitude targets such as drones, birds and vehicles. It provides position, movement status and target-type information for security teams operating in critical low-altitude airspace.
Key Features
- Ku-band low-altitude target detection and tracking
- 5 km detection range for small targets at RCS 0.01 m²
- 360° azimuth coverage for fixed-site perimeter awareness
- Real-time target position, motion status and target-type information
- IP65-rated outdoor design for harsh deployment environments
Application Scenarios
- Airport low-altitude protection
- Border and perimeter security
- Port and coastal surveillance
- Oilfield and industrial security
- Critical infrastructure protection
- Urban low-altitude monitoring

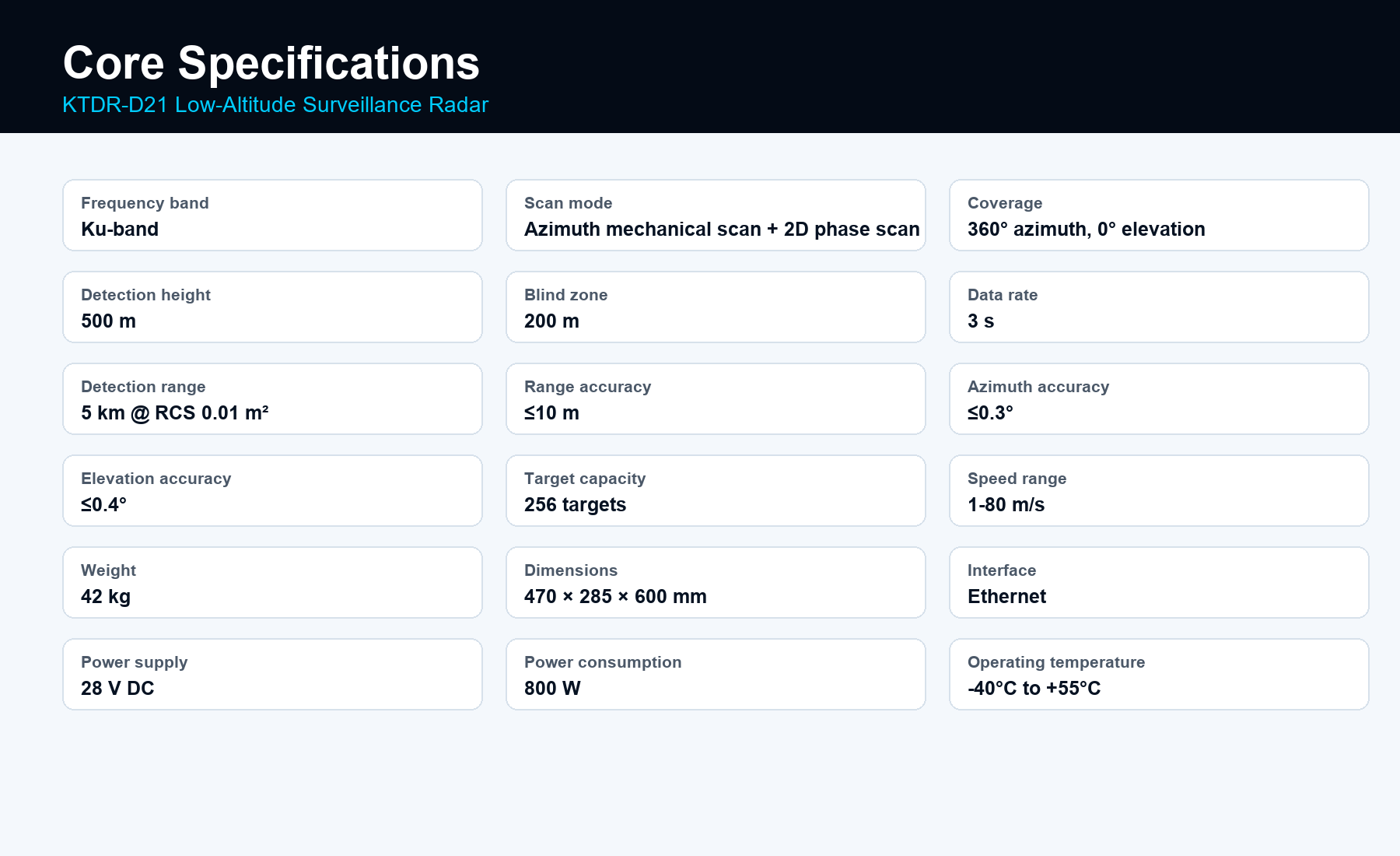

Technical Specifications
| Frequency band | Ku-band |
| Scan mode | Azimuth mechanical scan + 2D phase scan |
| Coverage | 360° azimuth, 0° elevation |
| Detection height | 500 m |
| Blind zone | 200 m |
| Data rate | 3 s |
| Detection range | 5 km @ RCS 0.01 m² |
| Range accuracy | ≤10 m |
| Azimuth accuracy | ≤0.3° |
| Elevation accuracy | ≤0.4° |
| Target capacity | 256 targets |
| Speed range | 1-80 m/s |
| Weight | 42 kg |
| Dimensions | 470 × 285 × 600 mm |
| Interface | Ethernet |
| Power supply | 28 V DC |
| Power consumption | 800 W |
| Operating temperature | -40°C to +55°C |
| Protection rating | IP65 |
Contact us for project configuration, integration support and deployment consultation.
